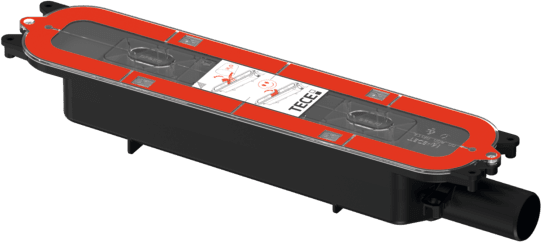

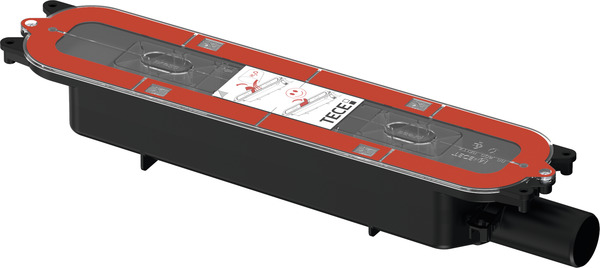

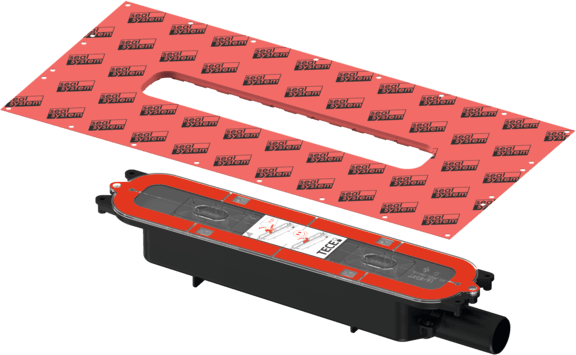

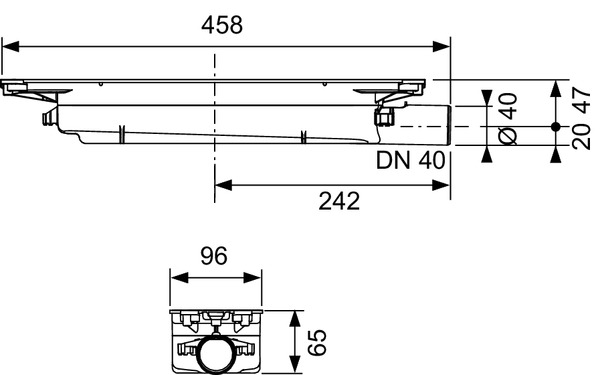

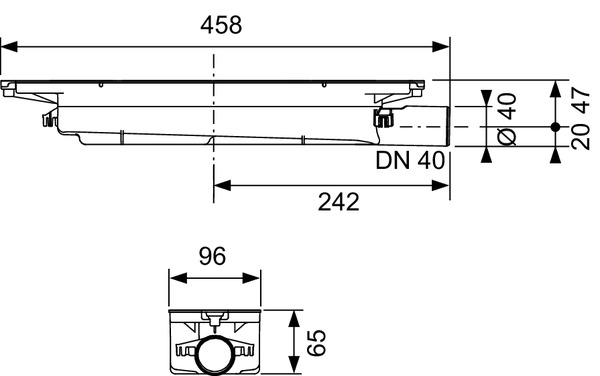

TECEdrainprofile drain "flat", DN 40 side drain Drain for TECEdrainprofile shower profile, for installing in screed, for connection to the side of a DN 40 drain pipe. With factory fitted and clickable Seal System sealing sleeve, to create a DIN 18534 compliant connection of the composite seal. Min. Installation height 65 mm (bottom edge of drain to upper edge of screed) Drainage capacity ≥ 0.48/≥ 0.56 l/s (to EN 1253 with 10/20 mm build-up above the profile cover) Sealing water height 25 mm Removable odour trap Integrated screed anchor Factory fitted, clickable and flexible sealing sleeve with Seal System Fits prefabricated sound insulation strips Protective construction cover Sliding/mobile seal for connection with TECEdrainprofile shower profile and to compensate structural tolerances Item number: 673001
