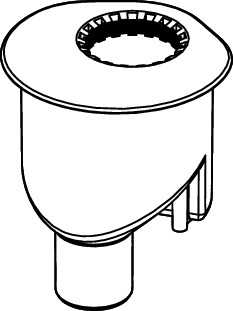

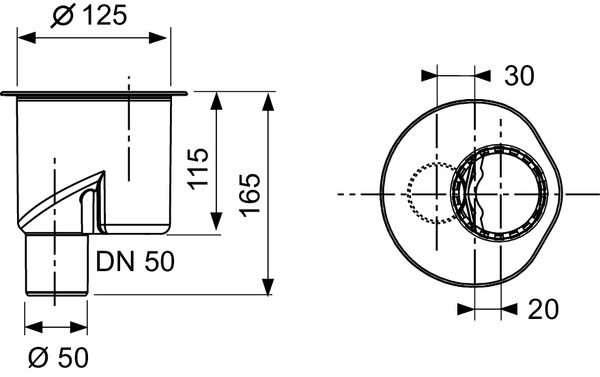

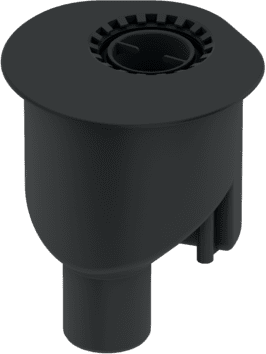

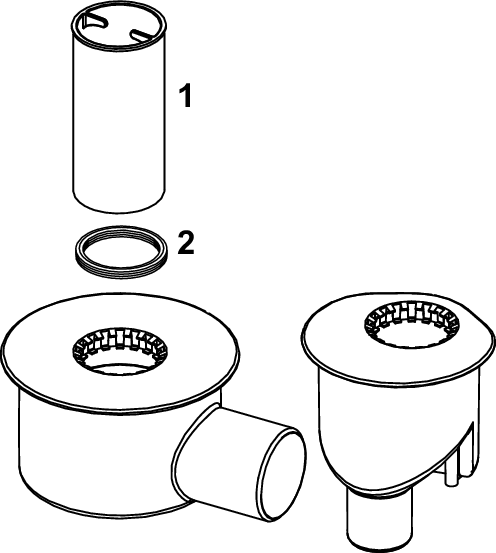

Vertical drain for the TECEdrainline shower channel to fit to the channel body, drain can be rotated 360°, for vertical connection to DN 50 drain pipe, with removable siphon immersion pipe. Minimum installation height from upper edge of channel to lower edge of stirrup = 67 mm Sealing water height = 50 mm Core hole required = 130 mm Drainage capacity to EN 1253, with 10/20 mm build-up above grate: Design grate "basic": 1.3/1.3 l/s Design grate "steel II": 1.3/1.3 l/s Tileable channel "plate"/"plate II": 1.2/1.2 l/s Please order separately: FireStop El 120 DN 50 fire protection set (optional)
